SUPERMARKET & PROVISION STORE WEIGHING SCALES

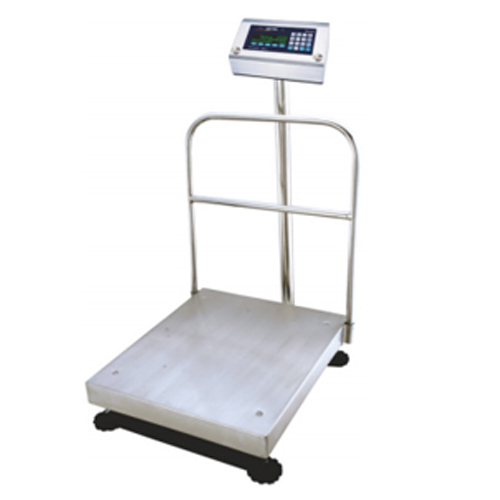

SI 810 System Scale Platform Type

flintex equipments
Technical Specifications
Weighing units g, kg, litre, carat (selectable)
Calendar/clock Date/time available through in-built RTC
Weighing recording Automatic or manual
Printing data Bill print (for each transaction) & List print (summary reports)
Memory 4 MB Flash (optionally expandable upto 8MB), 25,000 transaction records
Display type Graphical Dot-matrix LCD, 256X64 pixels
Standard interfaces 2 x RS-232 serial
1 x RS-485 (MODBUS ASCII)
1 x Centronics Parallel
6 x Digital I/O
1 x PS/2 Port (for keyboard and/or barcode scanner)
2 x Potential-free Set point relay output
Optional interfaces 1 x USB Host interface (pendrive)
Flame proof with CIMFR certified for Zone I and Zone II
Second Platform
Others 4-20mA or 0-20mA or 0-24mA
External scale/balance interface through RS-232, only for selected Essae models

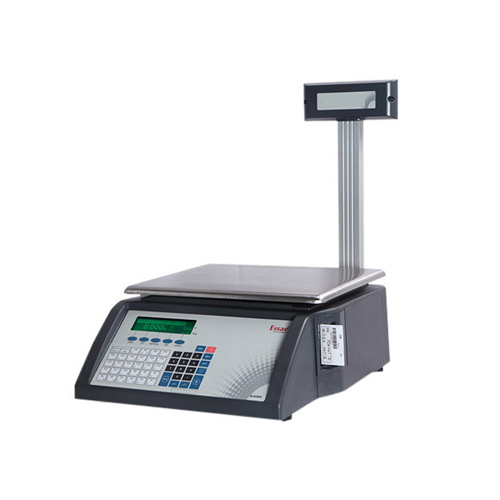

SI 810 PR Barcode Label Printer Scale

flintex equipments
Technical Specifications
Model SM-100PCS+ , SM-100BCS+ , SM-100EV+ , SM-100H+
Display 32 X 202 Full Dot Matrix Green LCD with Back-Light
Number of preset keys 56 , 32 , 74 , 76
Memory capacity 1MB (Standard)
Display resolution 1/3,000
Paper width Max 60 mm (Lable) 60 mm (Receipt)
Printing speed 80 mm/sec (Lable) 105 mm/sec (Receipt)
Label size Maximum 60 (W) X 220 (L)mm
Power source AC 220 / 230 (50 / 60 Hz.)
Standard interface RS232C, Ethernet, Cash drawer I/F, Wireless LAN I/F (IEEE 802.11b/g)
Note: Cash drawer and Wireless LAN are not included.
Dimensions (mm)
(W) X (D) X (H)		 383.4 X 419.3 X 552.6 , 383.4 X 389.3 X 162 , 386 X 416 X 550 , 350 X 369 X 844
Net Weighing 10.5kg , 9.7kg , 11.1kg , 11.5kg

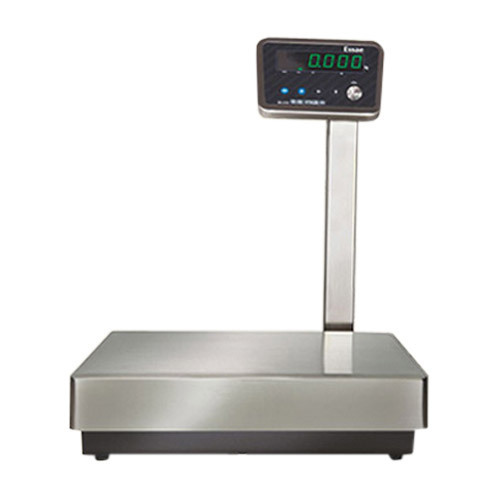

DS-515 Weighing Scale

flintex equipments
Technical Specifications
Styling Superior styling and aesthetics, Best for modern retail
Interface Standard RS-232 interface, In-built computer and POS connectivity
Dimenson SS-304 Platter (354mm x 294mm)
(Capacity : 31kg x 5g, 15kg x 2g and 6kg x 1g)

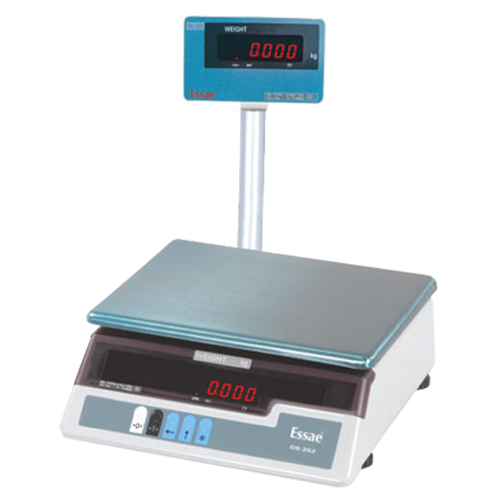

DS-252 Weighing Scale

flintex equipments
Technical Specifications
Power supply 230VAC, 50Hz
Power consumption 6W
Physical dimension(Table Top) 304(L) x 295(D) x 115(H) mm. ±0. 5mm.
Display type 7 Segment LED display
Display digit 6 Digits.
Display size 0.56" [14.22mm.]
Number of keys 5 Keys
Battery 6V/4Ah Rechargeable
Dual display In-built

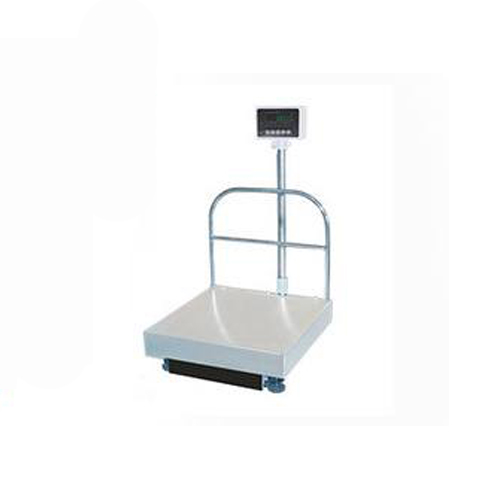

DS-415N Bench Scale

flintex equipments
Technical Specifications
Power supply 230V AC, 50Hz
Power consumption 13W
Display type Green Vacuum Fluorescent Display(VFD)
Display Digits 6 Digits
Display size 13mm
No. of Keys 5 keys
Rechargeable battery 6V/4Ah

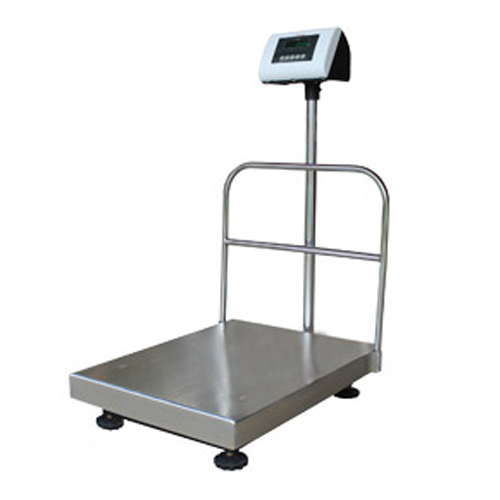

DS-215N Platform Scales

flintex equipments
Technical Specifications
Power supply 230V AC, 50 Hz
Display colour/digit Red/ 6 Digits
Display size 0.56" (14.22mm)
Number of keys 5 Keys
Battery 6V/4AH
Frame MOC MS (for all the types)

CONTACT US FOR YOUR PRODUCTS

STEEL PLATFORM WEIGHING SCALES

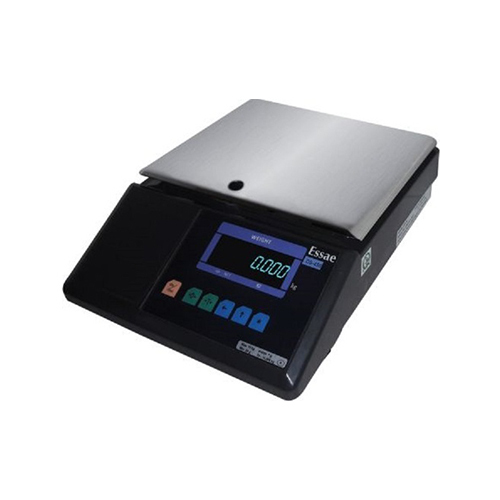

DS-451 Platform Scale

flintex equipments
Technical Specifications
Capacity (kg) 3/6/15/30
Accuracy (g) 0.2/0.5/1/2
Platform size (mm) 360 x 276
Loadcell Aluminium
Framework SS-304
Platter SS-304

SI 810 PR

flintex equipments
Technical Specifications
Model SM-100PCS+ , SM-100BCS+ , SM-100EV+ , SM-100H+
Display 32 X 202 Full Dot Matrix Green LCD with Back-Light
Number of preset keys 56 , 32 , 74 , 76
Memory capacity 1MB (Standard)
Display resolution 1/3,000
Paper width Max 60 mm (Lable) 60 mm (Receipt)
Printing speed 80 mm/sec (Lable) 105 mm/sec (Receipt)
Label size Maximum 60 (W) X 220 (L)mm
Power source AC 220 / 230 (50 / 60 Hz.)
Standard interface RS232C, Ethernet, Cash drawer I/F, Wireless LAN I/F (IEEE 802.11b/g)
Note: Cash drawer and Wireless LAN are not included.
Dimensions (mm)
(W) X (D) X (H)		 383.4 X 419.3 X 552.6 , 383.4 X 389.3 X 162 , 386 X 416 X 550 , 350 X 369 X 844
Net Weighing 10.5kg , 9.7kg , 11.1kg , 11.5kg

CONTACT US FOR YOUR PRODUCTS

JEWELLERY WEIGHING SCALES

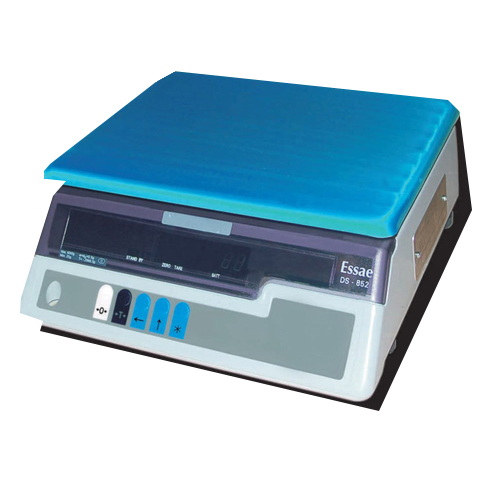

DS 852 Scales

flintex equipments
Technical Specifications
Power supply 230V AC, 50Hz
Power consumption 13W
Physical dimension 304(L) x 295(D) x 115(H) mm. ±0.5mm
Net Weighing 5kg ( Approx.) with battery
Display type Green Vacuum Fluorescent Display (VFD)
Display digit 6 Digits
Display size 13mm
Number of keys 5 Keys
Battery charger In-built
Dual display In-built
Battery 6V/4Ah

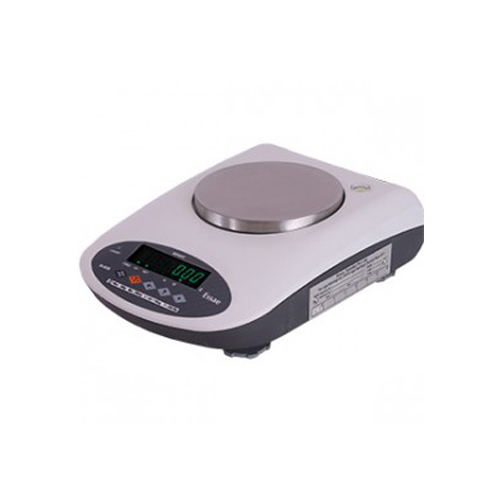

DS 852 G Precision Balance

flintex equipments
Technical Specifications
Power supply 230VAC, 50Hz
Power consumption 13W
Physical dimension 304(L) x 295(D) x 115(H) mm. ±0.5mm
Display type Green Vacuum Fluorescent Display (VFD)
Display digit 6 Digits
Display size 13mm
Number of keys 5 Keys
Battery charger In-built
Dual display In-built
Battery 6V/4Ah

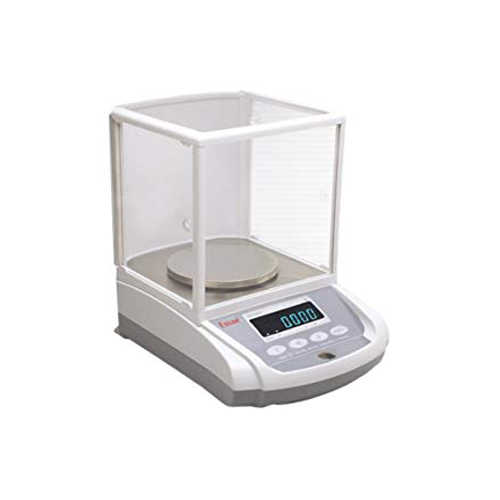

PG/FB Precision Balance

flintex equipments
Technical Specifications
Model number FB-200 FB-300 FB-600 PG-1000
Maximum weighing capacity 200g 300g 600g 1000g
Readability 0.001g 0.001g 0.005g 0.01g
Display resolution 2,00,000 3,00,000 1,20,000 1,00,000
Platter Size Dia 110mm Dia 110mm Dia 110mm Dia 150mm
Draft Shield Included (Standard) Included (Standard) Included (Standard) Optional accessory

Model number FB-600 FB-2000 FB-3000 PG-10000 PG-34000
Maximum weighing capacity 600g 2000g 3000g 10000g 34000g
Readability 0.001g 0.01g 0.01g 0.1g 0.5g
Display resolution 3,00,000 2,00,000 3,00,000 1,00,000 68,000
Platter Size Dia 110mm Dia 150mm Dia 150mm 205 x 250mm 205 x 250mm
Draft Shield Included
(Standard)		 Optional
accessory		 Optional
accessory		 Not
applicable		 Not
applicable

Technology Magnetic Force Restoration Technology (MFRT)
Calibration method Automatic software calibration (External Weighing)
Operating temperature +10°C to +40°C
Tare range Full capacity
Sensitivity drift (20°C to 40°C) +/- 5ppm/°C
Repeatability/Verification interval Linearity +/- 1d / +/- 2d
Display type Green Vacuum Fluorescent Display(VFD)
Dimensions without draft shield
(Width x Depth X Height)		 190mm x 275mm x 85mm (table-top) / 257mm x 350mm x 97mm (PG 10000 & PG 34000)
Display digits / Size 7 Digits / 13 mm
Approx. gross Weighing (balance only) 2 to 2.3kg (table-top) / 6.4kg (PG-10000 & PG-34000)
Power supply -AC/DC adaptor Input – 230V AC, 50Hz Output – 6.9V DC @ 1.5A, Max Watt – 13W
W & M classification Class II (PG Series) Class I (FB Series)
Processor Digital 8 bit micro- computer
Default weighing units Grams

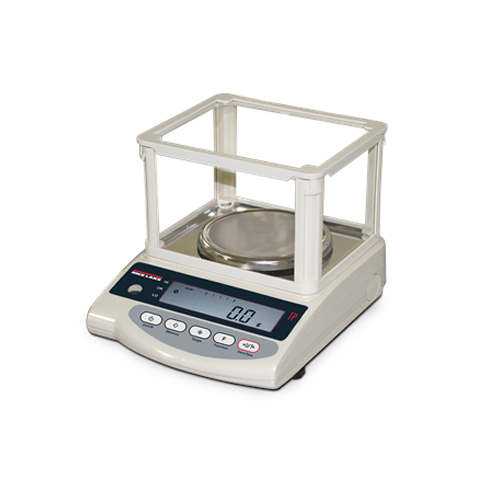

AJ-Series Precision Balance

flintex equipments
Technical Specifications
Weighing units g, ct
Power source AC 230V DC9V
Output RS-232C(standard)
Measuring system Tuning-Fork Frequency Sensing(MMTS)
Tare Full weighing range
Calibration With external calibration Weighing
Display LCD(height: 16.5mm)
Modes weighing, counting, %

CONTACT US FOR YOUR PRODUCTS

BAKERY, FRUITS & VEGETABLES SCALES

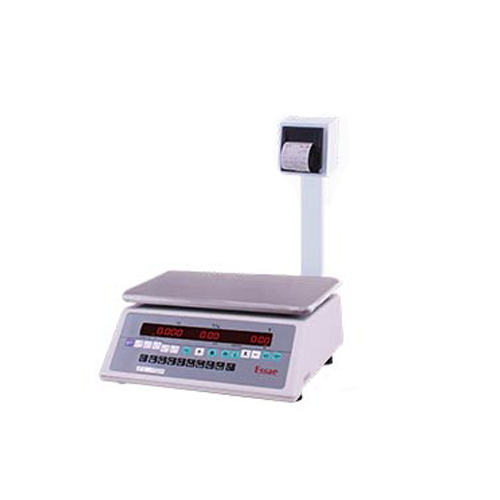

DS 252 PR Recipt Printer Scale

flintex equipments
Technical Specifications
No of PLUs / items 300
Preset keys / Hot keys Sx2
TAX/ VAT rates 3
Power supply 230 VAC, 50 Hz
Power consumption 30 W max
Physical dimension 304(W) x 382(D) x 39S(H) mm
Display type 7 Segment RED LED
Display digit and size 19 digits, 10 mm height
Number of keys 25 (Alphanumeric)
Rechargeable Battery 12 V/3.4 Ah
Printer Direct thermal
Printing speed 50 mm/sec (max)
Reports PLU sales, Total sales and PLU dump

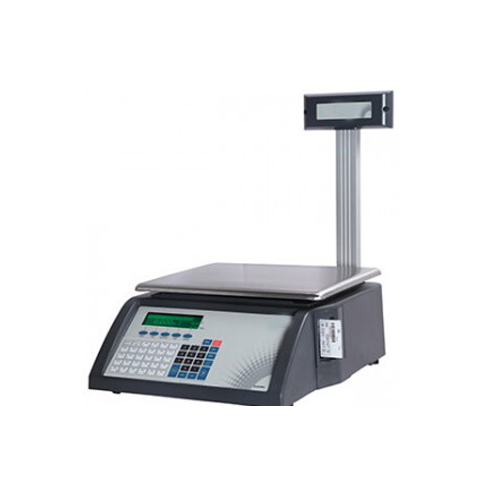

SI 810 PR Recipt Printing Scale

flintex equipments
Technical Specifications
Model Sl-810PRSS
Sl-810PR
Capacity/ Accuracy 6kg/1g
15kg/2g
31kg/5g
Resolution 1/6000
1/7500
1/6200
Display Type Graphical Dot Matrix LCD with Green Back Light
No. of keys Total Keys - 55 tact switch, Preset keys - 30 x 3
Memory capacity 2MB
Processor 32-bit ARM processor
Power source Power Supply - 230V AC,50Hz, 30W MAX
Battery 12V/3.4Ah Rechargeable
Standard interface 2 X USB Port Interface Keyboard/Scanner, RS232 - lNos.
Factory option Ethernet Interface
Paper width 2 Inch direct thermal
Printing speed SOmm/sec
Paper size Paper Width 57.5mm, Maximum 40mm dia
Application Software PLU Mapping, PLU Manager, User Manager, Backup etc.
Reports Total sales, PLU sales, Department sales, Group sales, Hourly sales, Operator sales, Bill summary, Inventory, PLU
Price override , Bill cancellation, PLU Reference, PLU Re-order, Non-Cash, Total sales summary
Dimensions (mm) Total machine dimension 373mm(L) X 350mm(W) X 480mm(H) Platform Size (mm) - 275(W) X 3SO(L) 490mm(L) X 360mm(W) X 450mm(H)
material of construction Fully SS
Top housing plastic Base Plate: MS powder coated

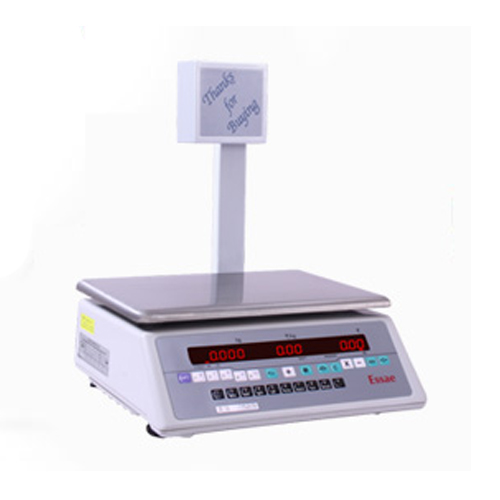

DS 252 Price Computing Scales

flintex equipments
Technical Specifications
No of PLUs / items 300
Preset keys / Hot keys 5x2
TAX/ VAT rates 3
Power supply 230 VAC, 50 Hz
Power consumption 6 W max
Physical dimension 304(W) x 382(D) x 395(H) mm
Display type 7 Segment RED LED
Display digit and size 19 digits, 10 mm height
Number of keys 25 (Alphanumeric)
Rechargeable Battery 6 V/4 Ah
Reports PLU sales, Total sales and PLU dump

SI 810 PR Barcode Label Printer Scale

flintex equipments
Technical Specifications
Model SM-100PCS+ , SM-100BCS+ , SM-100EV+ , SM-100H+
Display 32 X 202 Full Dot Matrix Green LCD with Back-Light
Number of preset keys 56 , 32 , 74 , 76
Memory capacity 1MB (Standard)
Display resolution 1/3,000
Paper width Max 60 mm (Lable) 60 mm (Receipt)
Printing speed 80 mm/sec (Lable) 105 mm/sec (Receipt)
Label size Maximum 60 (W) X 220 (L)mm
Power source AC 220 / 230 (50 / 60 Hz.)
Standard interface RS232C, Ethernet, Cash drawer I/F, Wireless LAN I/F (IEEE 802.11b/g)
Note: Cash drawer and Wireless LAN are not included.
Dimensions (mm)
(W) X (D) X (H)		 383.4 X 419.3 X 552.6 , 383.4 X 389.3 X 162 , 386 X 416 X 550 , 350 X 369 X 844
Net Weighing 10.5kg , 9.7kg , 11.1kg , 11.5kg

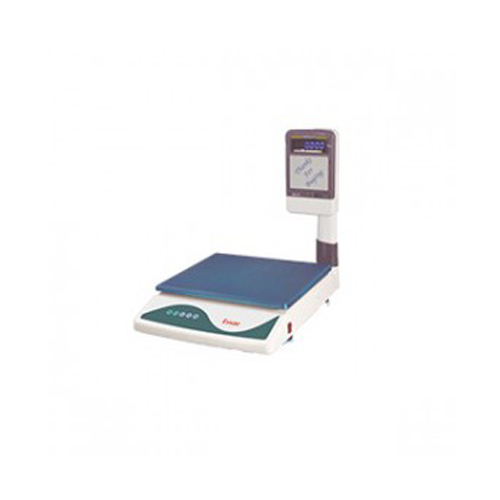

DS 75 Counter Scale

flintex equipments
Technical Specifications
Model DS-75
Physical dimension 345(L)mm x 428(W)mm x 407(H)mm
Weighing sensor Load Cell
Processor Micro Controller
Display 7 Segment Bright Blue Display
Display size 0.56” (14.22mm)
Display digits 6 Digits
Indications Zero, Tare, Batt, Unit
Calibration method Automatic Software Calibration
Power supply 230V AC, 50Hz
Power consumption 6W
Accuracy class Class III
Platter size 340mm x 280mm
Platter material Stainless Steel
Battery Inbuilt 6V / 4AH Rechargeable type with more than 50 hours backup (under full charge conditions)
Factory option RS-232 Serial Interface

DS 65 Counter Scale

flintex equipments
Technical Specifications
Power supply 230V AC, 50Hz
Power consumption 13W
Physical dimension 345(W) x 428(D) x 407(H) mm ± 5mm
Display type Green Vacuum Fluorescent Display(VFD)
Display Digits 6 Digits
Display size 13mm
No. of Keys 5 keys
Battery charger In-built
Rechargeable battery 6V/4Ah

CONTACT US FOR YOUR PRODUCTS

Industrial Weighing Scales

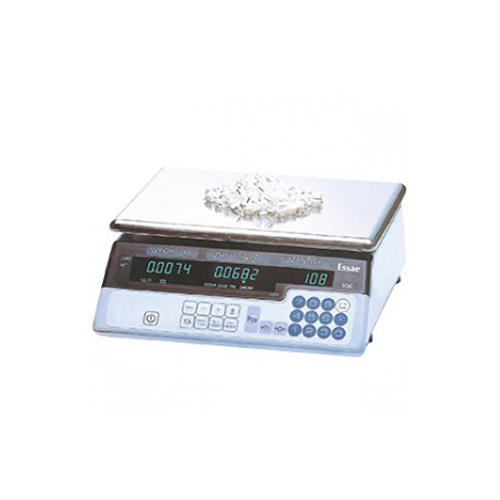

DS 85 Electronic Counting Machine

flintex equipments
Technical Specifications
Power supply 230V (+15%,-10%) AC, 50 Hz.
Power consumption 17W
Operating temperature / humidity 0° C to 45° C / 85%RH Max. (Non-condensing)
Physical dimension 302(L) x 295(D) x 125(H) mm. ± 0.5mm.
Net Weighing 4.5 kg (approx.)
Display type Green Vacuum Fluorescent Display (VFD)
Display digit Unit Weighing 5 digits, Weighing 5 digits, quantity 6 digits.
Display size 13mm.
Number of keys 10 Numeric keys and 13 function keys [Tactile key pad]
Battery charger In-built
Battery 6V/4Ah

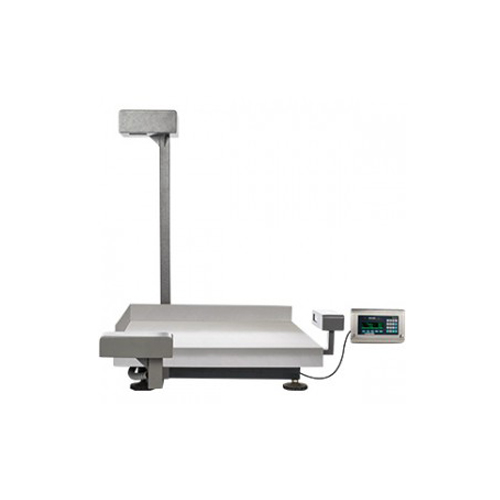

SI 810 for E-commerce and Logistics Industries

flintex equipments
Technical Specifications
Weighing unit kg
Measuring unit cm,mm
Maximum Weighing 50 kg
Weighing increment 5g
Platform size 600 x 600 mm
Measuring sensor Red Light Sensor class 2

CONTACT US FOR YOUR PRODUCTS

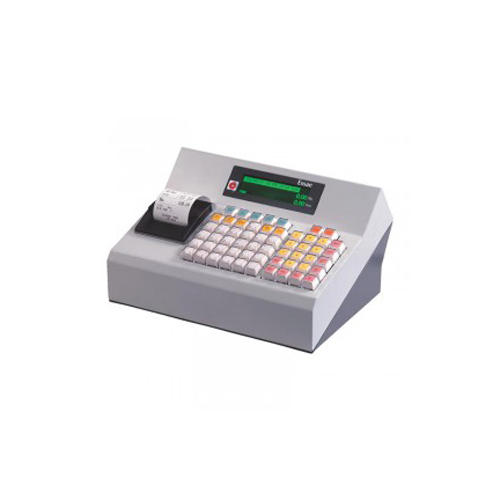

billing machines

RS 810 Billing Machines

flintex equipments
Technical Specifications
Power supply 230V AC, 50 Hzh
Power consumption 30W (max)
Physical dimensions 315(L) x 239(W) x 174(H)mm
Memory 2MB
Battery 12V/3.4AH re-chargeable
Display 256 x 64 pixels,graphical dot matrix LCD with green back light
No. of keys 55
Printer 2” Direct thermal
Printing speed 50mm/sec (max)
Paper roll type Direct thermal,57mm width and 40mmo
No. of PLUs 5000
Departments 99
Groups 999
Operators 25
Taxes 9
Discounts 99
Header/footer 5 Lines
KOT Guest-9,Tables-99, Waiters-99
Reports Total sales, departmental sales,

CONTACT US FOR YOUR PRODUCTS

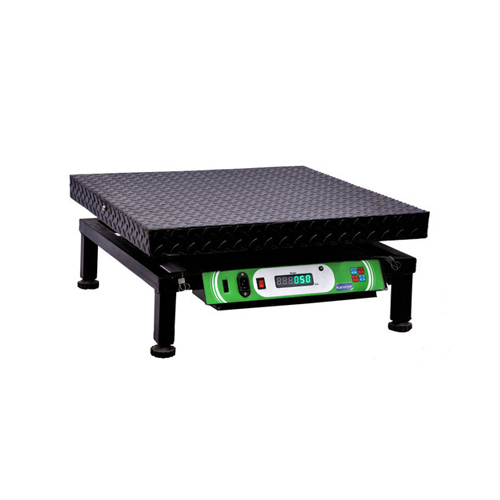

chicken weighing scales

Chicken Weighing Scales

flintex equipments
Technical Specifications
Pan size 400 × 400 mm
Capacity 100,200,300 kg
e value 10, 20, 50 g
Display Front & Rear

CONTACT US FOR YOUR PRODUCTS

TABLE TOP WEIGHING SCALES

DS - 450 Table Top Weighing Scales

flintex equipments
Technical Specifications
Capacity (kg) 0.3/0.6 1.5/3/6/15
Accuracy (g) 0.02/0.05 0.1/0.2/0.5/1
Platform size (mm) 205 x 250 205 x 250
Loadcell Aluminium Aluminium
Framework NA NA
Platter Aluminium SS-304
